Application: Household Appliance Lighting (Refrigerators)
FUSION
Loading

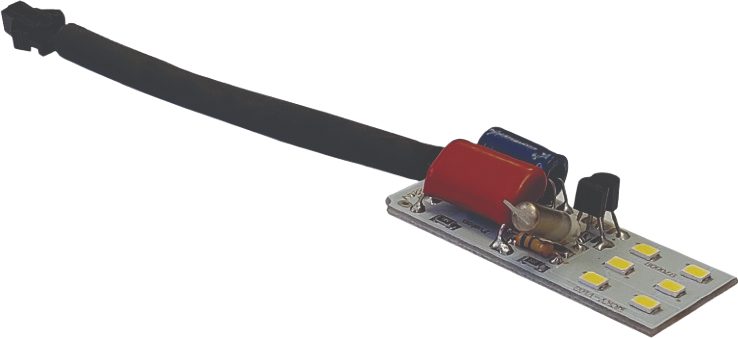

Product imageColor Code: CW
Color Designation: White
Beam Angle: 140°
Color Temperature: 2700–6500 K
CRI: 80
SDCM: < 7
R9: > 0
Luminous Efficacy: 90 ± 10% (Lm/W)
Rated Luminous Flux: 210–220 Lm
Working Temperature: −20 تا +40°C
Power Factor: 0.3–0.4
Flicker: < 30%
THD: < 35%
Application: Household Appliance Lighting (Refrigerators)
Rated Power Consumption: 2 W
Actual Power Consumption: 2.2 W
Efficiency: 90 ± 10% (lm/W)
Input Voltage: 220 VAC
Current: 22 mA
Socket: SM (Customizable according to customer requirements)
Lifetime: 25,000 h
PCB Material: FR4
Weight: 12 g
Adjustable Angle: 15–30°
