01
Color Code: WW-NW-CW
FUSION
Loading

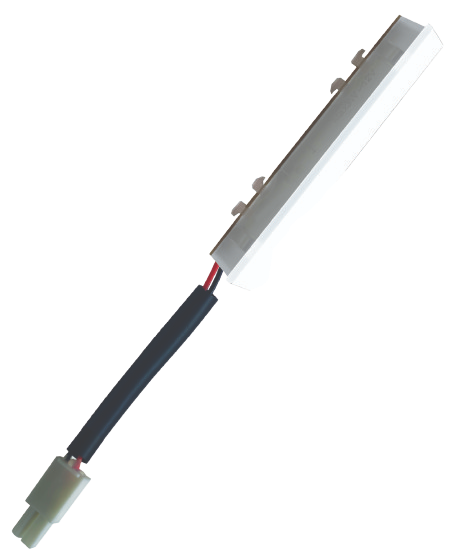

Product imageApplication: Household Appliance Lighting (Range Hoods)
Rated Power Consumption: 2 W
Actual Power Consumption: 2.2 W
Luminous Efficacy: 70 ± 10% lm/W
Input Voltage: 12 VDC
Current: 180 mA
Connector: SM (Customizable according to customer requirements)
Lifetime: 25,000 h
PCB Material: FR4
Cover Material: Polycarbonate (PC)
Weight: 10 g
Color Code: WW-NW-CW
Color Designation: White
Beam Angle: 140°
Color Temperature: 2700–6500 K
CRI: 80
SDCM: 0
Luminous Efficacy Light: 70–80 (Lm/W)
Rated Luminous Flux: 180–200 LM
Working Temperature: −20~40°C
