01
Power ON/OFF : Power key for system activation, deactivation, and function cancellation.

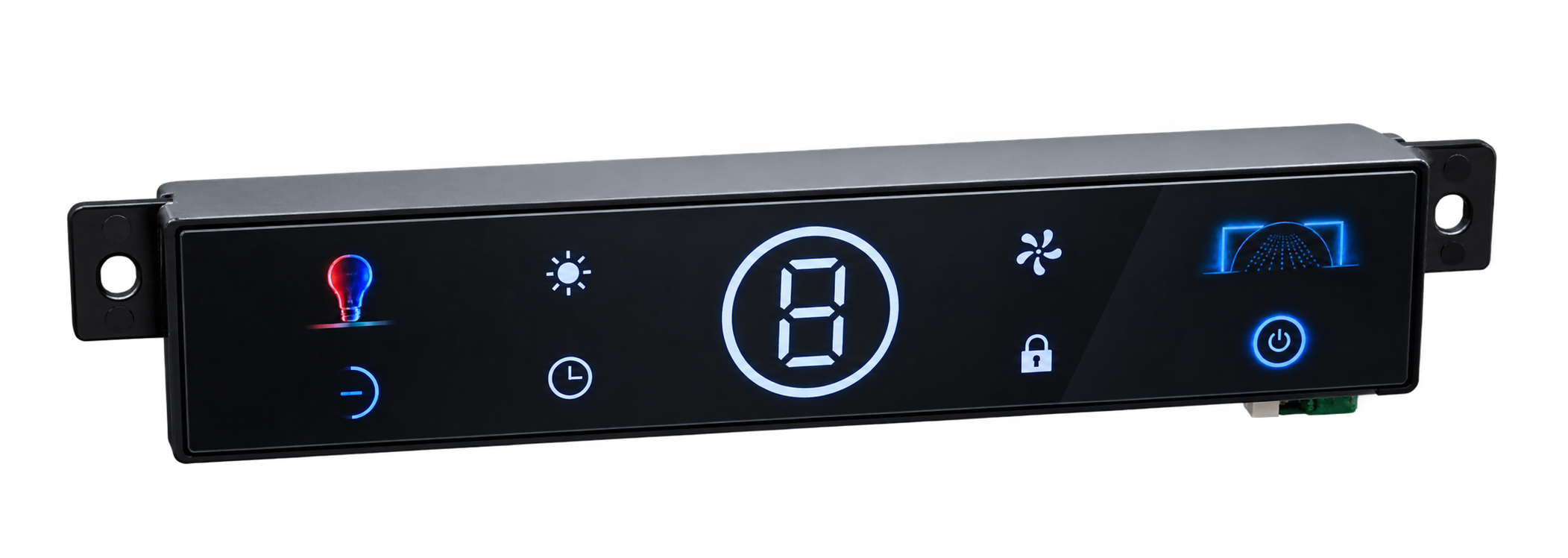

Product image4 touch keys
Hand motion detection
Automatic shut-off timer
Child lock
Smoke and temperature detection
6-button IR remote control
Power ON/OFF : Power key for system activation, deactivation, and function cancellation.
Motor Speed Control : 3 motor speed levels (1–3) with visual speed indication. Motor speed can be increased/decreased via touch keys, remote control, or hand motion.
Lighting Control : Touch, remote, or hand-motion control for turning the hood light ON/OFF.
Child Lock : Pressing and holding the Light and Timer keys simultaneously for 3 seconds locks all touch keys.
Timer Function : Adjustable motor auto-off timer from 1 to 9 minutes with visual timer indication.
Automatic Mode : When connected to the smoke and temperature sensor module, the hood automatically activates the motor at speed 3 when the temperature exceeds 45°C or smoke/gas is detected.
IR Remote Control : 6-button remote control for Power, Speed Increase, Speed Decrease, Automatic Mode, Timer, and Light functions.
Hand Motion Control : Right-to-left hand motion turns the system ON, activates the light, and starts the motor at minimum speed. Repeating the motion increases motor speed. Left-to-right motion decreases the speed and subsequently turns the light OFF and switches the system to OFF mode.
